COLUMBIA D400

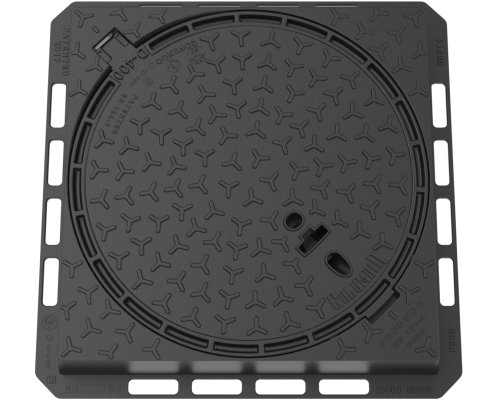

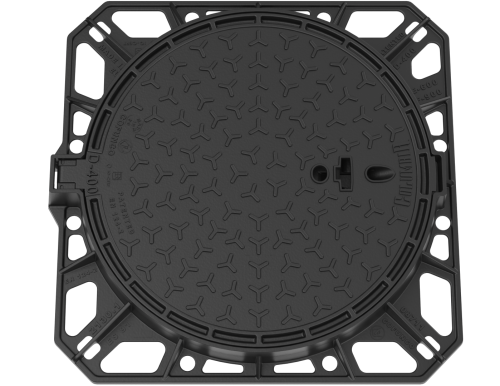

Hinged manhole cover with apparent frame or square frame

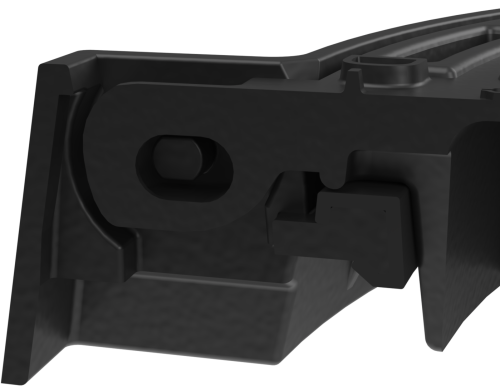

ArticulaciónBloqueo antiretornoMarco cuadradoSoporte elastico

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

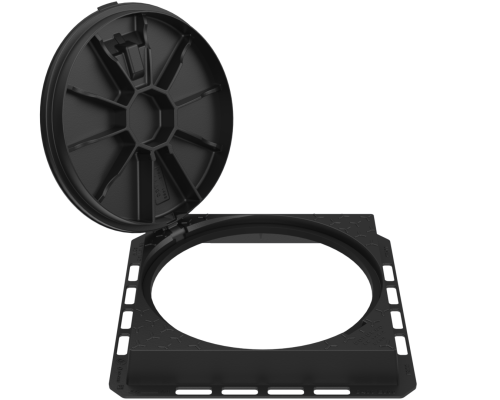

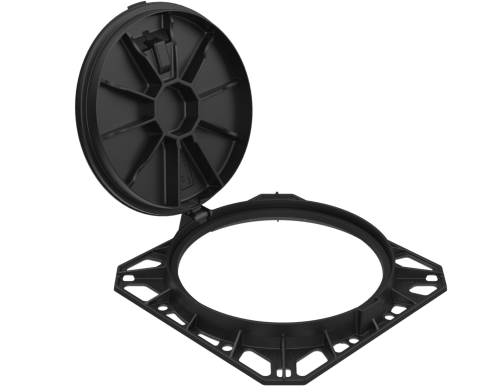

Set with clear opening 705mm. Hinged cover with safety blocking at 100˚angle and removable from the frame at 90˚. Closing with interlocking perimeter edge. Opened by standard tools (crowbar, pick). Customization available. Opening force below 54 daN.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
2130-1 *Ø 765900x900 100Ø 705AENOR
2134 Apparent Frame *Ø 765910x910 Base
780x780 Sup/Surf.
130Ø 705AENOR
2130 *Ø 765 900 X 900 150 Ø 700AFNOR
* Locking system. Switch key with adaptable head.
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
