D400 ClassCOSMOS D400  - 1
Back to results


Hinged access cover with elastomeric gasket and elastic closing system

ArticulaciónBloqueo antiretornoCerraduraMarco aparenteMarco cuadradoMarco octogonalSoporte elastico


Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

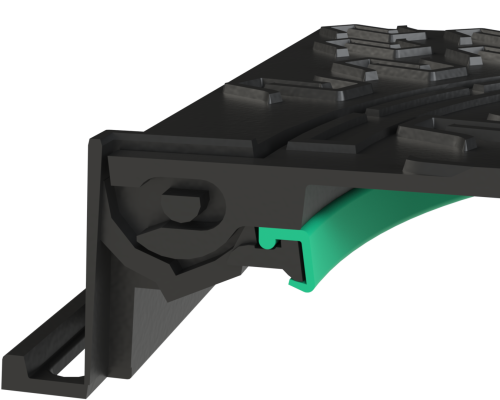

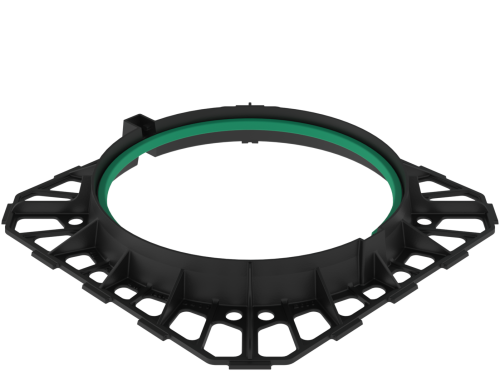

Set of 600mm clear opening. Available with 850mm and 790mm exterior diameter. Hinged cover with maximum opening range of 120º, safety blocking at 90º angle and removable from the frame at 90º. Closing system operated by two elastic bars. Anti-residue elastomeric gasket design for noise reduction. Anti-slip surface. Opened by standard tools (crowbar, pick). Available in ventilated cover model 1164VENT and grating model 6184 intense traffic (11,8 dm2 absorption surface) and model 6174. All frames may be substituted for concrete cover model 1186. Opening force below 17,5 daN. Total or partial customization available.


Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
1174 *Ø645Ø850100Ø600AFNOR
1164 *Ø 645Ø 850100Ø 600AFNOR

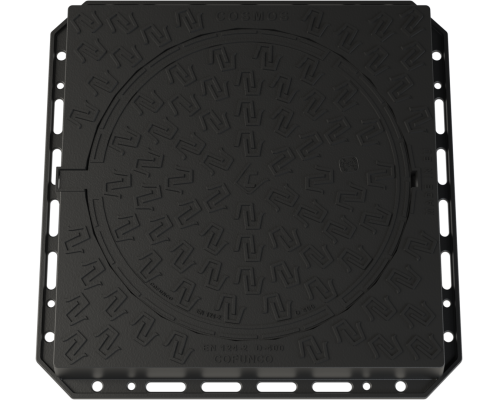

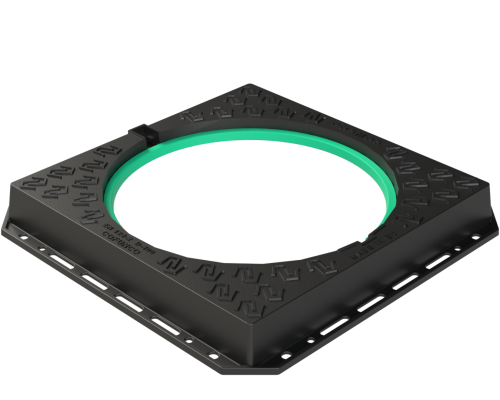

2164 *Ø 645850x850 100Ø 600AFNOR

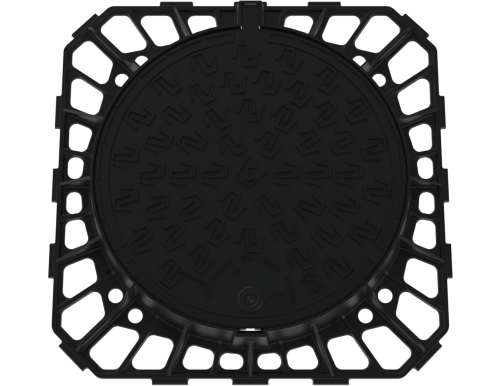

2131 Ø 645850 Base
750 Sup/Surf.
100Ø 600BVC
* Locking system with elastic tabs, with hexagonal or pentagonal head screw. Anti-theft system with pin and blind nuts on the joint.
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
