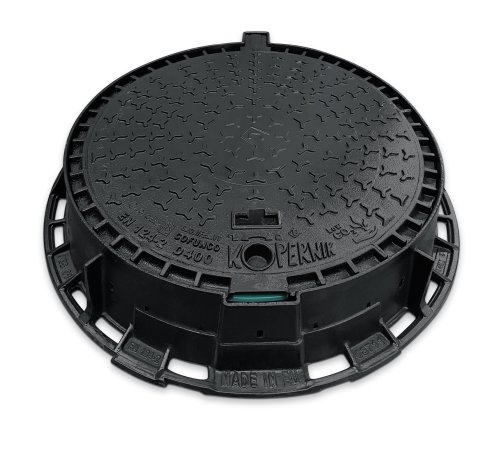

KOPERNIK D400
Hinged access cover with gasket
Material
Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.
Features
Access cover with maximum opening range 120°, safety blocking at 90° angle and removable from the frame at 90°. Depth of insertion 59 mm. Lower structure of the lid is formed by 8 main ribs. Continuous, reinforced gasket to avoid distortion and partially serves as hermetic sealing. Closing system with interlocking perimeter edge. Customization available.
Sound level: 82 dBA
Coating
Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.
| Model | Cover dimensions (a) mm | Frame dimensions (b) mm | Frame height (h) mm | Free opening (cp) | Certificates | Technical information | |
|---|---|---|---|---|---|---|---|
| 1191 | 635 | 770 | 150 | 600 | IO-CERT | ||
| 1193 | 635 | 770 | 115 | 600 | IO-CERT |
