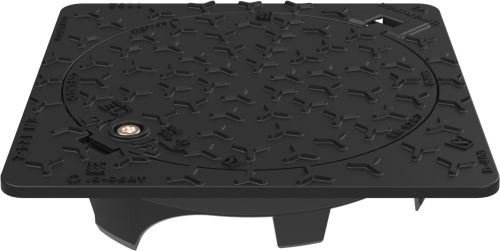

HUBBLE D400

Telescopic hinged cover for pipe installation

ArticulationLockApparent frameSquare frame

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Set of frame and cover for direct installation of pipe. Hinge with anti-theft bolt. Hydraulic frame prevents odor leakage. Anti-slip surface. Opened by standard tools (crowbar, pick). customization available. Opening force below 5 daN.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
1192 Ø 315356x35673Ø 261IO-CERT
* Available in different product classes D400, B125 and A15.
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
