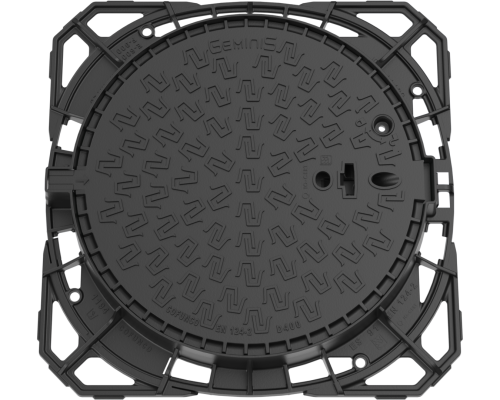

GEMINIS D400

Hinged access cover with gasket - Intensive traffic

ArticulaciónBloqueo antiretornoMarco cuadradoMarco redoncoSoporte elastico

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

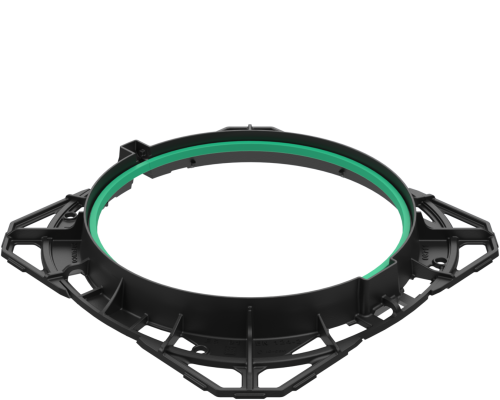

Set with clear opening 700mm. Hinged cover with safety blocking at 90˚angle and removable from the frame. Maximum opening range 120º.  Closing with interlocking perimeter edge. Depth of insertion in the frame 55 mm. Continuous gasket in the frame.anti-slip surface.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
1194 *Ø 745 Ø 950100Ø 700IO-CERT
2194 *Ø 745 910 X 910100Ø 700IO-CERT
* Locking system
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
