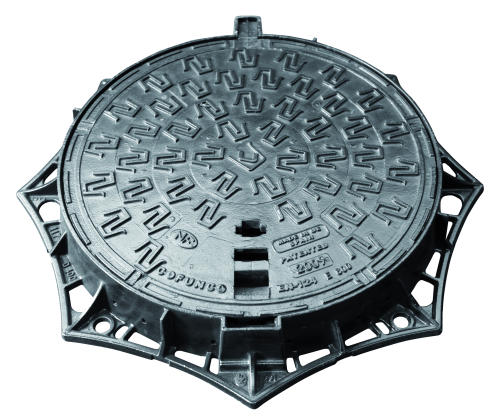

GALAXY D400
Hinged manhole cover
Material
Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.
Features
Hinged access cover with elastomeric gasket and elastic closing system. Octogonal frame management with 90º safety clock. Equipped with an elastomeric seal and manoeuvring box.
Intense traffic.
Sound level: 82 dBA.
Coating
Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.
| Model | Cover dimensions (a) mm | Frame dimensions (b) mm | Frame height (h) mm | Free opening (cp) | Technical information | |
|---|---|---|---|---|---|---|
| 1184D | 645 | 850 | 100 | 604 |
* Anti-intrusion lock.
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
to propose the best solution. Call us +34 938 034 697
