BALTIKA D400
Hinged grating with elastic closing system
Material
Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.
Features

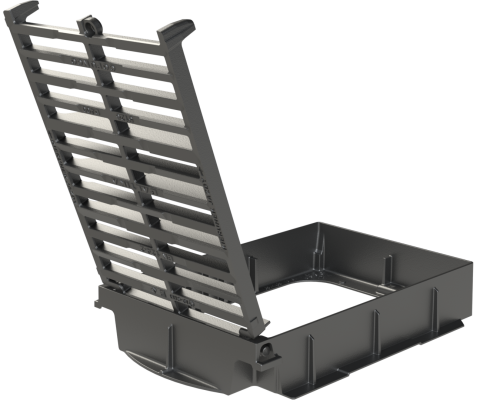

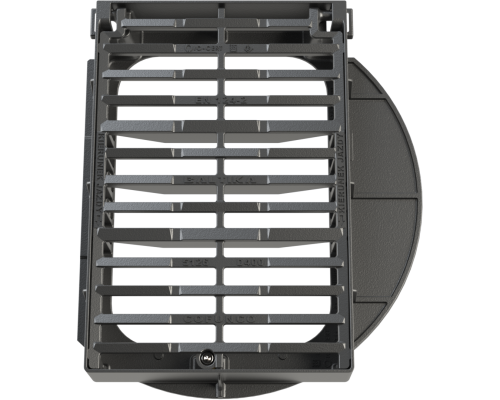

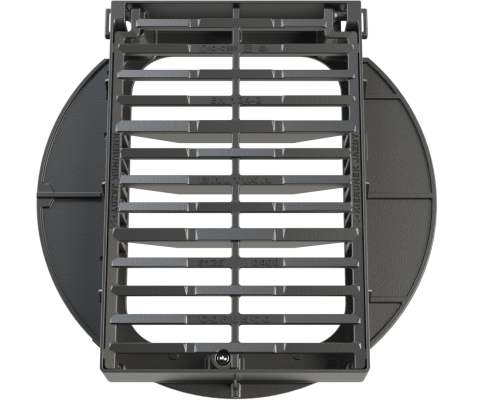

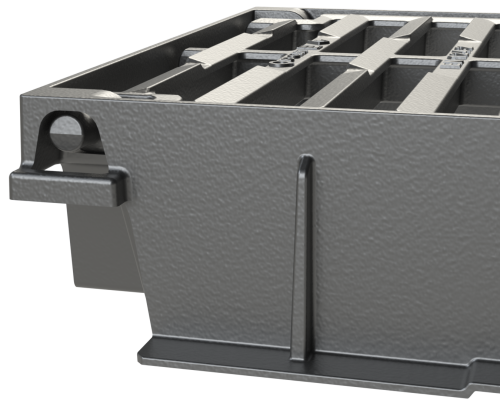

Set of grating and frame with 3 type of frame – round, half-round, sqaure. Hinged grating with maximum opening range of 120° and elastic closing system. Anti-theft hinge.
Coating
Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.
| Model | Frame dimensions (b) mm | Clear opening (o) mm | Gratings dimensions (h) mm | Gratings height (h) mm | Surface absorption dm3 | Certificates | Technical information | |
|---|---|---|---|---|---|---|---|---|
| 5126.10 | 471 x 650 | 500 x 356 | 471 x 650 | 115 | 11 | IO-CERT | ||
| 5126.20 | 570 x 650 | 500 x 356 | 598 x 397 | 115 | 11 | IO-CERT | ||
| 5126.30 | 670 x 650 | 500 x 356 | 598 x 397 | 115 | 11 | IO-CERT | ||
| 5130.10 | 471 x 650 | 500 x 356 | 598 x 397 | 150 | 11 | IO-CERT | ||
| 5130.20 | 570 x 650 | 500 x 356 | 598 x 397 | 150 | 11 | IO-CERT | ||
| 5130.30 | 670 x 650 | 500 x 356 | 598 x 397 | 150 | 11 | IO-CERT |

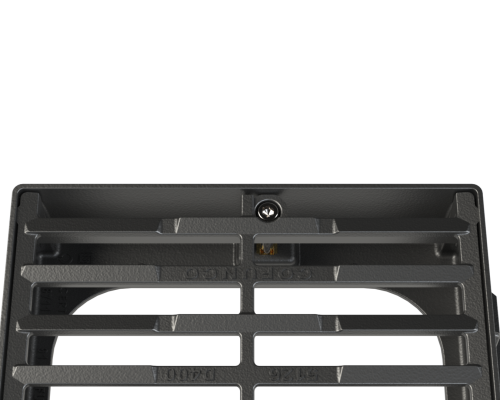

* Locking system.
