F900 ClassE600 ClassD400 ClassC250 classB125 Class
D400 ClassBALATON D400 - 1
Back to results

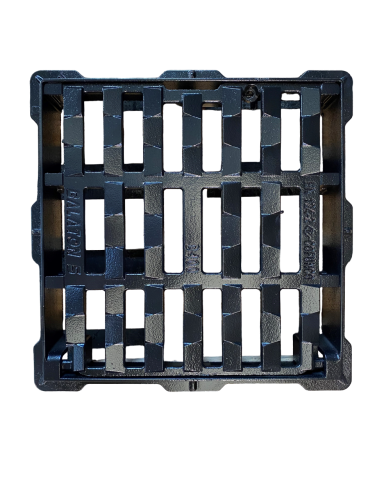

BALATON D400

Grating with hinge

ArticulationPRM

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Articulated grate wedged at 2 points. Normal traffic.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmGratings dimensions (h) mmSurface absorption dm3Technical information
5184 550 x 55075425 x 425455 x 4559,2
5183 400 x 38075305 x 305310 x 3104,1
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
Add to quotation
