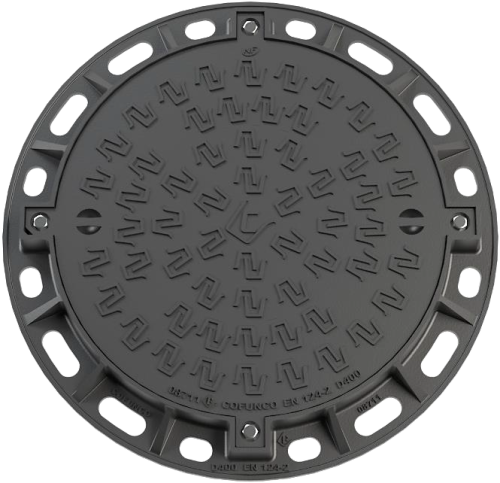

APOLO D400

Tight manhole cover and frame

CerraduraMarco redoncoSoporte elastico

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Set of 600 mm clear opening. Air and water tight sealed below 1 bar of pressure. The hermetic seal is secured by 4 closures of stainless steel bolts, equipped with non-loosening washers for vibration. Anti-slip surface designed for pedestrian safety. Opened by standard tools (crowbar, pick). Opening force below 30 daN. Customization available.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
1122 Ø 655Ø 85075Ø 600AFNOR
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
