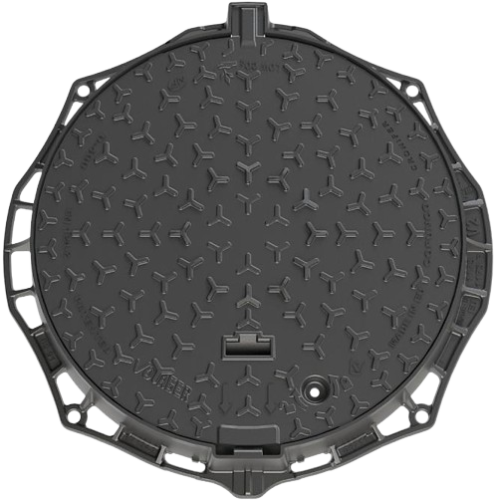

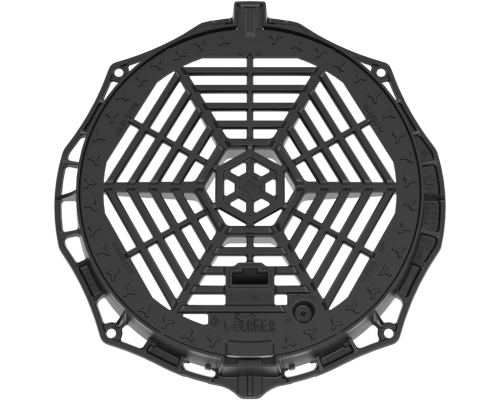

VOYAGER D400

Hinged access cover with elastomeric gasket in entire frame permiter and elastic closing system

ArticulaciónBloqueo antiretornoCerraduraMarco redoncoSoporte elastico

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Set of 600mm clear opening and hinged cover with maximum opening range of 120º, safety blocking at 90º angle and removable from the frame at 90º. New patented elastic closing system. Continuous gasket to avoid distortion and partially serves as hermetic sealing. Customization available.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
1173 *Ø 635 Ø 785 100 Ø 600AENOR
IO-CERT
2173 Ø 635810x81075Ø 600BVC
* Locking system
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
