URBEX C250

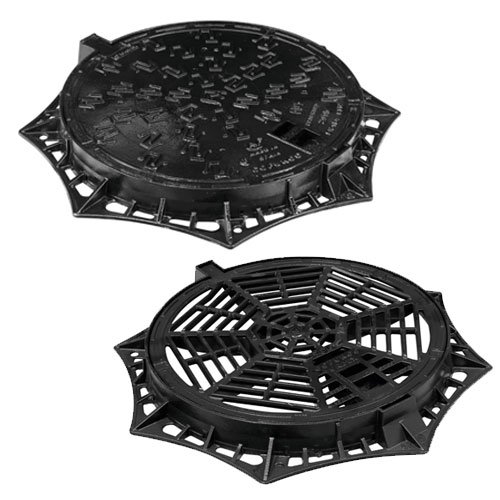

Hinged manhole cover and hinged grating with gasket
Material
Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.
Features
Set of 604mm clear opening. Anti-slip surface. The elastomeric gasket ensures stability andnoise reduction. With handle designed for lifting with multiple tools. Model 6177 gratingcover. Opening force below 15 daN. Customization available.
Coating
Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.
| Model | Cover dimensions (a) mm | Frame dimensions (b) mm | Frame height (h) mm | Clear opening (o) mm | Certificates | Technical information | |
|---|---|---|---|---|---|---|---|
| 1177 * | 645 | 850 | 75 | 604 | AFNOR | ||
| 6177 | 645 | 850 | 75 | 604 | AFNOR |
* Ventilated cover with locking system and key
