Back to results

A1 SINGLE F900

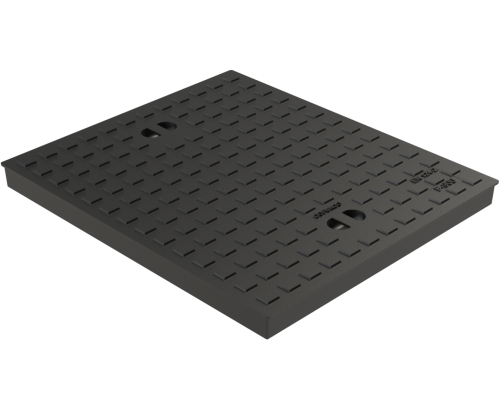

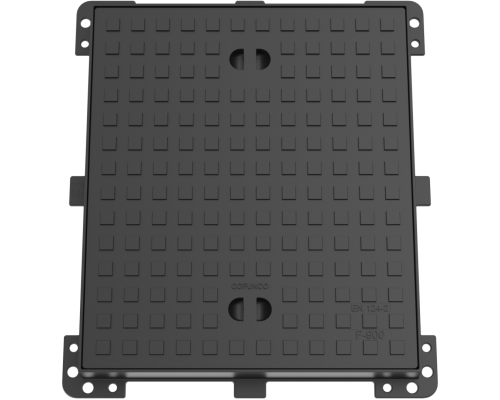

Hinged manhole cover

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

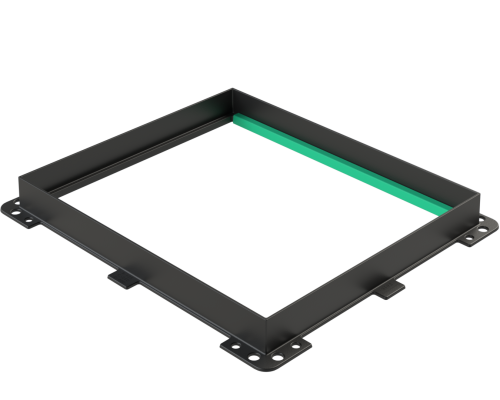

Road manhole cover with gasket and optional galvanized frame. Total or partial customization available. Intense traffic.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmTechnical information
3192 A1 725 X 625916 X 716100683 X 583
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
Add to quotation
