RETEL TELEFÓNICA D & H D400

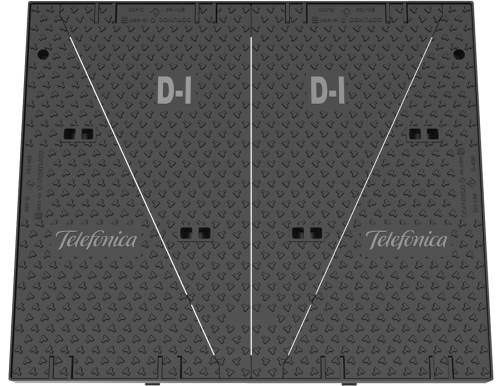

Triangular access covers approved by Telefónica

ArticulaciónBloqueo antiretornoCerraduraMarco cuadrado

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

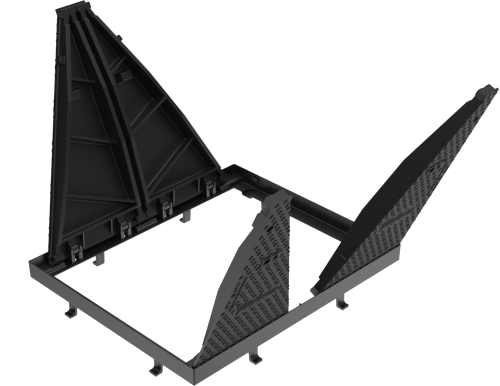

Triangular access covers with maximum opening range of 110˚ ,safety blocking at 90˚angle andremovable from the frame at 90˚. Anti-slip surface. Special noise reduction design, optimising thefitting between the frame and the cover.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
10107 *4 1250x1060801090x900AENOR
10107-s *4 1410x1220801090x900AENOR
10108 *2 914x902100800x700AENOR
* Key with special head for opening the locking system.
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
