RETEL D400

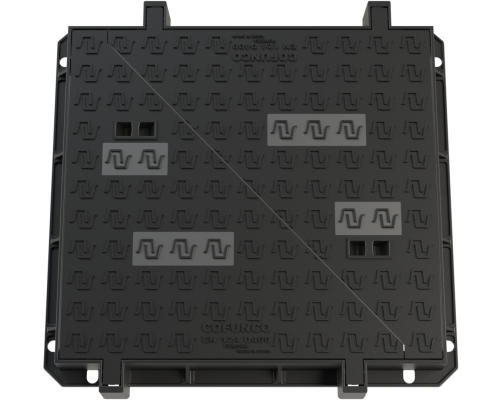

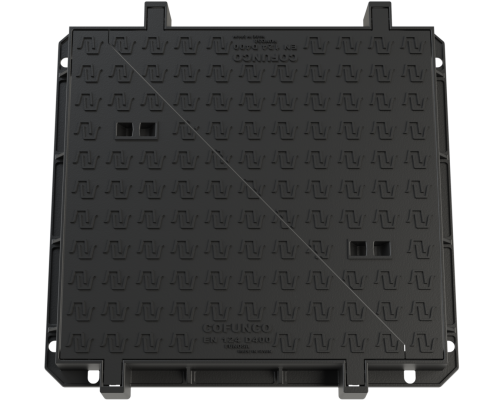

Triangulas access cover for telecom

ArticulaciónBloqueo antiretornoCerraduraMarco cuadrado

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

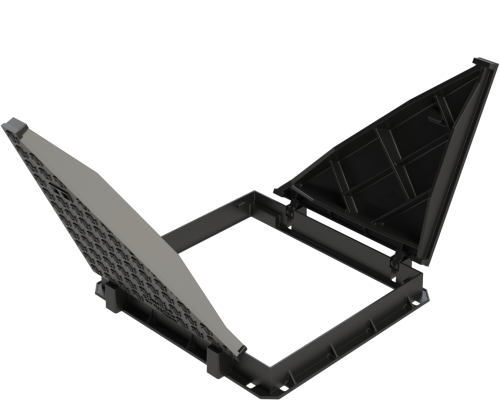

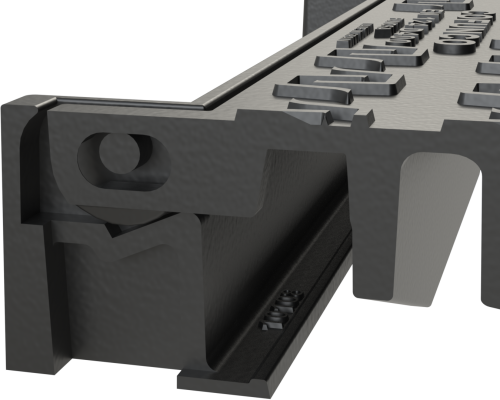

Set formed by 2 or 4 triangular covers per frame. Hinged cover with maximum opening range of 110ºand safety blocking at 90º. Hinges integrated into the frame. Anti-slip surface. Opened by standard tools(crowbar, pick). customization available.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
10112 *2 795x729100600x600BVC
10101 *2 870x870100760x760AENOR
10101-S *2 925x925100760x760AENOR
10108 *2 914x902100800x700AENOR
10103 *4 1285x8701001180x760AENOR
10103-S *4 1340x9251001180x760AENOR
10113 *4 1400x7961001200x600BVC
10102 *4 1650x8701001545x760BVC
10102-S *4 1755x9251001545x760BVC
* Locking system
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
