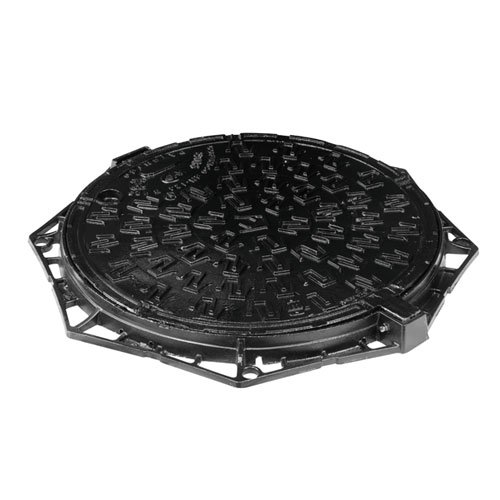

PAS B125

Pedestrian area access cover with gasket

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Cover equipped with anti-theft bolt in the hinge, opening of up to 120˚. Anti-residue elastomeric gasket designed for stability and noise reduction. Anti-slip surface. Opened by standard tools (crowbar, pick). Opening force below 10,5 daN. Customization available.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelCover dimensions (a) mmFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmCertificatesTechnical information
1175 Ø 645Ø 80050Ø 600AFNOR
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
