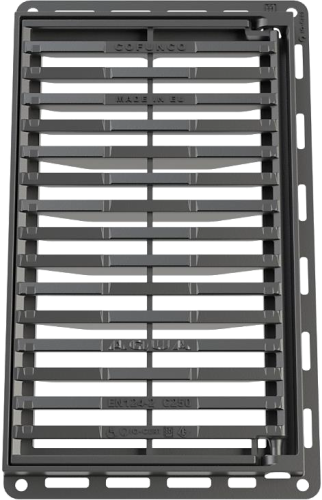

AQUA D400

Hinged grating

ArticulaciónMarco cuadrado

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Set includes grate and frame. Hinge anti-theft once installed. Anti-slip surface. Opened by standard tools (crowbar, pick). Opening force below 17 daN.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelFrame dimensions (b) mmFrame height (h) mmClear opening (o) mmGratings dimensions (h) mmSurface absorption dm3CertificatesTechnical information
5121 *730x42080550x297600x35011,10AENOR
* Locking system
Request advice. Our engineering dept. will study your project
to propose the best solution. Call us +34 938 034 697
